Stock Status:
Condition: New
SKU : 2615M43

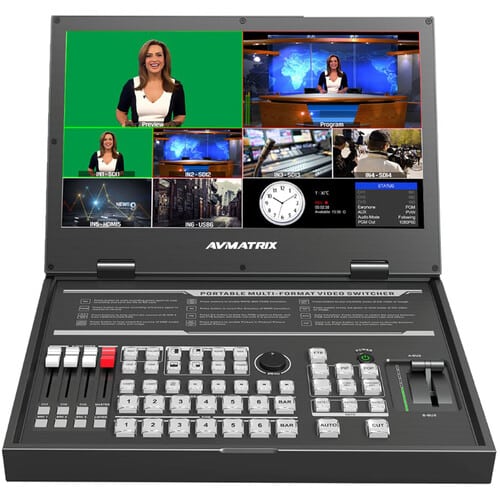

The AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display is a professional broadcast production system designed for live streaming, recording, and multi-camera switching. It integrates switching, monitoring, and streaming in one portable unit.
The PVS0615U Portable 6-Channel Switcher from AVMATRIX is similar to the predecessor PVS0615 model but additionally features a USB Type-C live streaming output (UVC/UAC). It supports up to six signals in different resolutions and frame rates. The first four channels must be SDI and the other two can be any mix from two HDMI, two DVI/VGA, and two USB Type-A inputs, with HDMI supporting up to UHD 4K60 resolution. All the connections are autodetecting. The portable switcher provides a flexible solution for sports, events, education, and other live production applications. It allows video switching, audio mixing, and up to 1080p60 H.264 PGM recording via an SD card slot.
All the signals can be scaled to 1080p60 or 1080i60 on PGM output via SDI/HDMI. The switcher is housed in a robust metal case and has a 15.6″ Full HD display and familiar switching controls, including a T-bar. The display allows for multiview monitoring of six sources along with PVW and PGM with an audio meter.
| Product | Price (KSh) |
|---|---|
| AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display | 183,400 |
| Specification | Details |
|---|---|
| Brand | AVMATRIX |
| Model | PVS0615U |
| Inputs | 4× SDI + 2× HDMI + DVI/VGA + USB |
| Outputs | HDMI PGM, HDMI Multiview, SDI, USB-C |
| Display | 15.6″ Full HD IPS Monitor |
| Resolution | 1080p60 |
| Audio | RCA/TRS + embedded audio |
| Keying | Chroma, Luma, PiP, PoP |
| Control | T-Bar + LAN |
| Streaming | USB-C UVC/UAC |
The unit features a rugged portable design with a built-in 15.6″ display for full standalone operation without external monitors.
Handles multiple SDI and HDMI inputs with stable 1080p60 switching.
USB-C plug-and-play streaming to OBS, vMix, Zoom, and similar platforms.
Supports multiview, transitions, keying, audio mixing, and full live production workflow.
The AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display improves efficiency by combining switching, monitoring, streaming, recording, and audio control into one system, reducing external hardware dependency.
| Pros | Cons |
|---|---|
| Built-in display | Expensive |
| 6-channel support | No 4K |
| Professional workflow tools | Complex for beginners |
| Portable design | Heavy unit |
Yes, via USB-C UVC/UAC.
6 inputs (SDI + HDMI + DVI/VGA + USB).
No, up to 1080p60 only.
Yes, via SD card recording.
Yes, 15.6″ built-in display.
Yes, widely used in production setups.
Yes, built-in display supports it.
Yes, fully standalone.
Yes, full audio mixing support.
Yes, designed for field use.
The AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display is a premium live production system offering professional switching, streaming, and monitoring. At KSh 183,400, it delivers a complete all-in-one broadcast solution.
