Blackmagic Design ATEM SDI Extreme ISO Switcher Overview
The Blackmagic ATEM SDI Extreme ISO Switcher is a high-end SDI-based live production system designed for professional multi-camera streaming, switching, and full post-production workflows. It allows operators to switch between up to 8 SDI cameras in real time while simultaneously recording every input separately (ISO recording), along with the final program output.
It is widely used in broadcast studios, large churches, and multi-camera event production environments.
Blackmagic Design ATEM SDI Extreme ISO Switcher Price in Kenya
Product
Price (KES)
Blackmagic ATEM SDI Extreme ISO Switcher
180,000 – 260,000 KES
Blackmagic Design ATEM SDI Extreme ISO Switcher Specifications Table
Specification
Details
Video Inputs
8x 3G-SDI
ISO Recording
Yes (all 8 inputs individually recorded)
Program Recording
Yes
Streaming
Built-in RTMP via Ethernet
Output
4x 3G-SDI program outputs
Max Resolution
1080p60
Audio
Fairlight audio mixer
Multiview
Up to 16 views
Keyers
Multiple chroma + luma keyers
DVE Effects
Picture-in-picture support
Control
Hardware + ATEM Software Control
Power
External DC supply
Blackmagic Design ATEM SDI Extreme ISO Switcher Performance & Features
Real-time switching across 8 SDI video sources
ISO recording of all inputs for full editing flexibility
Stable hardware streaming engine for long productions
Broadcast-grade transitions and effects
Advanced layering and compositing tools
Seamless integration with DaVinci Resolve workflows
Blackmagic Design ATEM SDI Extreme ISO Switcher Streaming & Recording
Direct streaming to YouTube, Facebook, Twitch via Ethernet
Records all 8 inputs separately as H.264 files
Records program output simultaneously
Auto-generates DaVinci Resolve project file for editing
USB-C recording to external storage
Designed for continuous professional live production workflows
Blackmagic Design ATEM SDI Extreme ISO Switcher Audio & Control
Built-in Fairlight audio mixer for broadcast-quality sound
Multiple embedded SDI audio channel support
Real-time EQ, compressor, limiter, and gain control
Hardware control buttons for fast switching
Full software control via ATEM Software Control

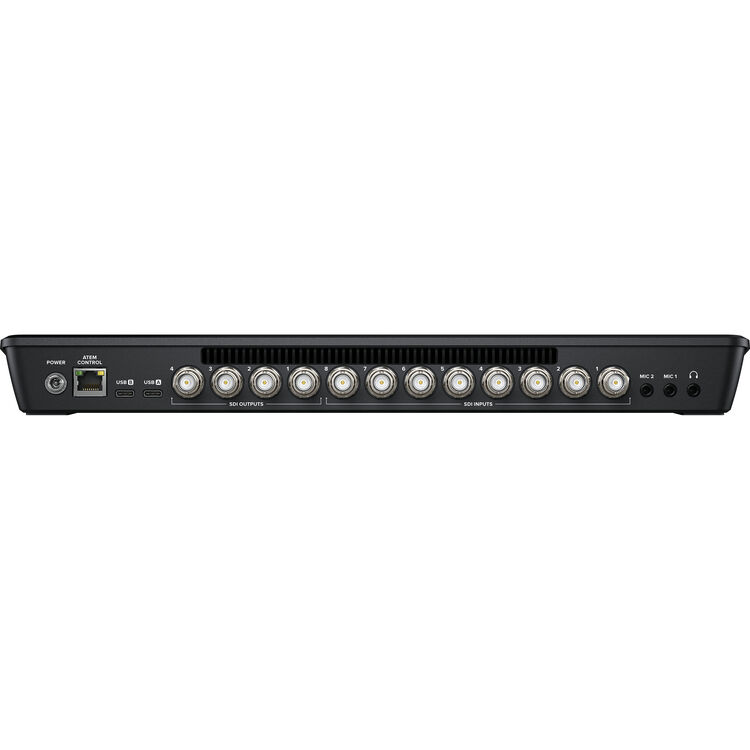

Blackmagic Design ATEM SDI Extreme ISO Switcher Connectivity
8x 3G-SDI inputs for professional cameras
4x 3G-SDI program outputs for monitors and routing
Ethernet port for RTMP live streaming
USB-C ports for recording and webcam output
3.5mm stereo audio input for external microphones
3.5mm headphone output for monitoring
SDI embedded audio support across all inputs
Control via USB or Ethernet connection

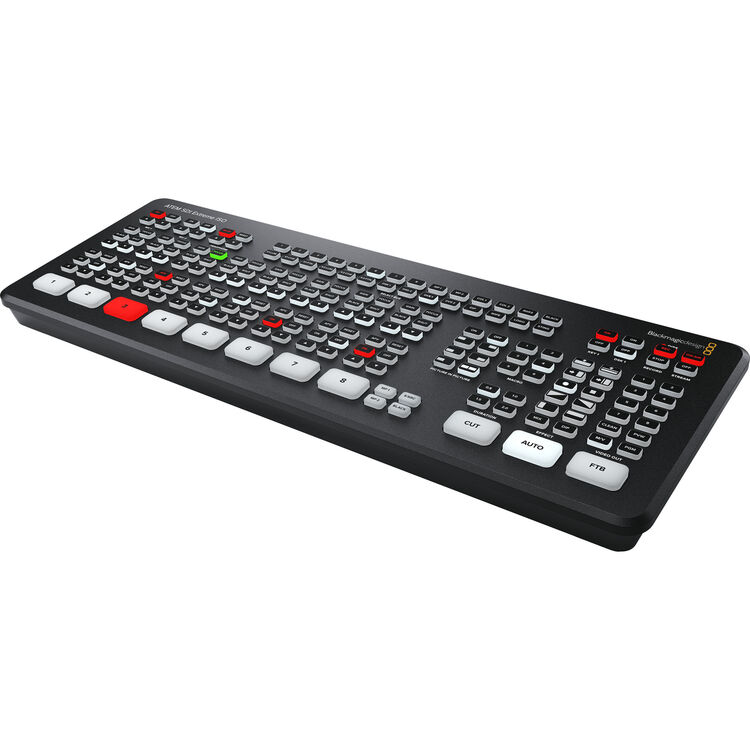

Blackmagic Design ATEM SDI Extreme ISO Switcher Build and Design
Rugged broadcast-grade metal chassis
Compact rack/desk-friendly professional design
Backlit tactile buttons for live operation
Optimized layout for fast multi-camera switching
Built for studio, church, and event production environments
Portable enough for mobile SDI broadcast rigs
Blackmagic Design ATEM SDI Extreme ISO Switcher Use Cases
Professional broadcast studios
Large church live streaming systems
Multi-camera sports production
Corporate event broadcasting
Podcast and interview studios
Education and training production
Live concerts and event coverage
Blackmagic Design ATEM SDI Extreme ISO Switcher Pros and Cons
Pros
Cons
8 SDI inputs for large productions
Limited to 1080p (no 4K support)
Full ISO recording for all sources
Requires SDI infrastructure
DaVinci Resolve project integration
High storage requirements
Built-in hardware streaming
Complex setup for beginners
Broadcast-level reliability
No internal storage
Blackmagic Design ATEM SDI Extreme ISO Switcher FAQs
What does ISO recording mean? It records each camera input separately for full post-production editing.
Does it support 4K? No, it supports up to 1080p60 only.
Can it stream without a computer? Yes, it has a built-in hardware streaming encoder.
How many cameras can it support? Up to 8 SDI inputs.
What is its biggest advantage? It combines live switching, ISO recording, and DaVinci Resolve editing workflow in one system.
Blackmagic Design ATEM SDI Extreme ISO Switcher Conclusion
The Blackmagic ATEM SDI Extreme ISO Switcher is a powerful professional live production system designed for large-scale SDI workflows. With 8 SDI inputs, ISO recording, built-in streaming, and full DaVinci Resolve integration, it is ideal for broadcast studios, churches, and high-end multi-camera productions in Kenya that require reliable and scalable live production capabilities.
