MikroTik CSS106-5G-1 5-Port Gigabit Switch Plus 1 SFP Key Specifications
5 × Gigabit Ethernet ports (10/100/1000 Mbps)
1 × Gigabit SFP port for fiber uplink
SwOS web-based management system
Layer 2 smart managed switch
Fanless (silent) design
10 Gbps switching capacity (non-blocking)
VLAN, port isolation, and traffic management support
MAC filtering and bandwidth control features
Compact desktop form factor
Low power consumption (approx. 5–11W
Warranty: The warranty tendered hereunder, on the electronic product(s) sold under this invoice will be provided exclusively by their respective Authorized Agents/Distributors and are limited to the period indicated from the date ofyour invoice, except otherwise mentioned as per the warranty conditions as carried along with the products(s)

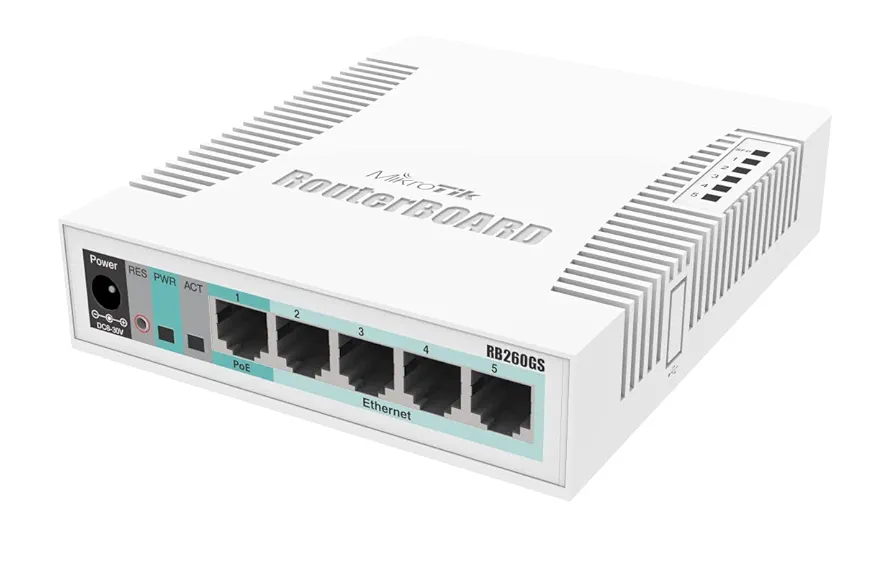

The MikroTik CSS106-5G-1 5-Port Gigabit Switch Plus 1 SFP (also known as RB260GS) is a compact smart switch designed for small offices, home networks, and light enterprise deployments. It combines five high-speed Gigabit Ethernet ports with a dedicated SFP slot for fiber connectivity, making it ideal for networks that need both copper and fiber integration.
It runs MikroTik’s SwOS (SwitchOS), a lightweight browser-based operating system that allows easy configuration of VLANs, port isolation, traffic control, and basic Layer 2 switching features without the complexity of full RouterOS.
This makes it a strong choice for users who want managed switching features at an affordable cost without deep networking complexity.
MikroTik CSS106-5G-1 5-Port Gigabit Switch Plus 1 SFP Price in Kenya
Product
Price (KES)
MikroTik CSS106-5G-1 5-Port Gigabit Switch Plus 1 SFP (RB260GS)
6,500 – 9,500 KES
MikroTik CSS106-5G-1 Specifications Table
Specification
Details
Model
CSS106-5G-1S (RB260GS)
Ports
5 × Gigabit RJ45 + 1 × SFP
Switching Capacity
10 Gbps
Forwarding Rate
7.44 Mpps
Operating System
SwOS (web-based)
Architecture
Layer 2 smart switch
VLAN Support
Yes
Jumbo Frames
Up to ~9KB
Power Input
11–30V DC (passive PoE supported)
Power Consumption
~5–11W
Cooling
Passive (fanless)
Enclosure
Compact plastic case
Management
Web GUI
Operating Temperature
-20°C to +60°C
MikroTik CSS106-5G-1 Performance
The MikroTik CSS106-5G-1 delivers reliable gigabit switching performance suitable for small to medium network setups.
Non-blocking architecture ensures full Gigabit throughput across ports
Stable Layer 2 switching for LAN environments
Efficient handling of VLANs and segmented networks
Suitable for ISP uplinks via SFP fiber connection
Low latency performance for office and home networking
While it is not an enterprise core switch, it performs very well in edge and access-layer deployments.
MikroTik CSS106-5G-1 Connectivity and Features
5 Gigabit Ethernet ports for wired devices
1 SFP port for fiber uplinks or backbone links
SwOS browser-based configuration
VLAN configuration for network segmentation
Port mirroring for monitoring traffic
MAC filtering for basic security control
Bandwidth limiting per port
Plug-and-play deployment with optional configuration
MikroTik CSS106-5G-1 Design and Build
Compact and lightweight design
Fanless operation for silent environments
Durable plastic enclosure
Desktop or rack shelf placement
Low heat output suitable for 24/7 operation
MikroTik CSS106-5G-1 Use Cases
Small office and home office (SOHO) networks
CCTV and surveillance systems
ISP customer edge switching
Fiber uplink distribution in small networks
Network segmentation using VLANs
Home labs and MikroTik learning environments
MikroTik CSS106-5G-1 Pros and Cons
Pros
Cons
Affordable managed switch
Limited advanced enterprise features
5 Gigabit ports + 1 SFP uplink
No PoE support
VLAN and Layer 2 management
Plastic build (not rack-grade metal)
Low power consumption
SwOS is basic compared to RouterOS
Silent fanless operation
Not ideal for large enterprise cores
Easy web-based setup
Limited Layer 3 capabilities
MikroTik CSS106-5G-1 FAQs
Is the MikroTik CSS106-5G-1 a managed switch? Yes, it is a smart managed Layer 2 switch running SwOS.
Does it support fiber connections? Yes, it has 1 SFP port for fiber uplinks.
Can it handle gigabit internet? Yes, it supports full gigabit throughput across ports.
Is it good for CCTV systems? Yes, it is commonly used for CCTV and small surveillance networks.
Does it require configuration? No, it is plug-and-play, but VLAN and advanced features can be configured via web interface.
MikroTik CSS106-5G-1 Conclusion
The MikroTik CSS106-5G-1 5-Port Gigabit Switch Plus 1 SFP (RB260GS) is a reliable, affordable, and efficient smart switch for small networks in Kenya. With gigabit speeds, SwOS management, VLAN support, and a dedicated SFP fiber uplink, it offers excellent value for home, office, and light enterprise deployments where simplicity and stability are key.
