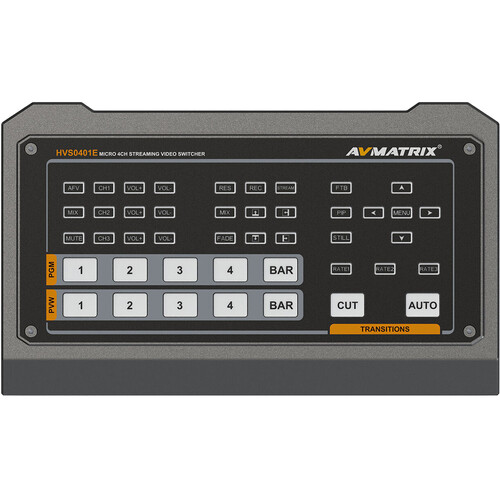

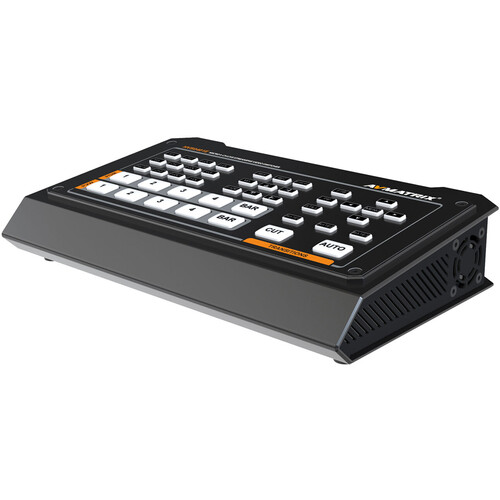

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER Price in Kenya

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFOMART SWITCHERS

KSh 47,900

Stock Status:

Condition: New

SKU : 1953M38

Key Specifications

Model: AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER
Device Type: Professional 4-Channel Multiformat Video Switcher
Video Inputs: 3× HDMI + 1× HDMI/DisplayPort input
Video Outputs: 2× HDMI Program Outputs + 1× HDMI Multiview Output + 1× USB-C Output + 1× LAN Output
Max Resolution: Up to 1080p60
Streaming Output: RTMP streaming via LAN port + USB-C UVC capture output
Recording Support: USB disk / SD card recording support
Audio Support: Embedded HDMI audio + 3.5mm mic/line audio mixing
Transitions: Cut, Auto, Mix, Fade, Wipe effects
Keying: PiP (Picture-in-Picture), adjustable size and position
Control Interface: T-Bar, button switching, IP LAN control
Tally Support: GPIO tally system support
Build: Compact professional metal chassis

Warranty: The warranty tendered hereunder, on the electronic product(s) sold under this invoice will be provided exclusively by their respective Authorized Agents/Distributors and are limited to the period indicated from the date ofyour invoice, except otherwise mentioned as per the warranty conditions as carried along with the products(s)

Warranty Guide

Description

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER OVERVIEW

The AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER is a compact professional live production switcher designed for multi-camera streaming, broadcasting, and recording. It supports HDMI and DisplayPort inputs, making it a flexible solution for hybrid production setups.

It is widely used in live events, churches, studios, and online streaming workflows due to its portability and strong feature set.

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER PRICE IN KENYA

Product	Price (KSh)
AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER	47,900

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER FULL SPECIFICATIONS

Specification	Details
Brand	AVMATRIX
Model	HVS0401E
Inputs	3× HDMI + 1× HDMI/DP
Outputs	HDMI PGM, HDMI Multiview, USB-C, LAN
Resolution	1080p60
Audio	Embedded + mic/line inputs
Keying	PiP support
Control	T-Bar + LAN
Streaming	RTMP via LAN + USB capture

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER DESIGN & BUILD

The device features a compact and lightweight metal design suitable for mobile and studio production. It is engineered for fast setup and reliable operation in live environments.

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER PERFORMANCE

Video Performance

Smooth switching between multiple HDMI and DisplayPort sources with stable 1080p output.

Streaming Performance

Supports direct streaming via LAN (RTMP) and USB-C UVC output for OBS and similar software.

Production Performance

Offers professional transitions, PiP support, audio mixing, and tally integration for live production workflows.

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER EFFICIENCY

The AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER improves production efficiency by combining switching, streaming, recording, and monitoring in one compact unit. It reduces the need for external capture devices and simplifies live production setups for faster workflow execution.

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER FEATURES

4-channel multiformat switching system
HDMI + DisplayPort input support
USB-C live capture output
RTMP streaming via LAN
USB/SD recording support
Picture-in-Picture (PiP)
Audio mixing system
Tally GPIO support
Professional transition effects

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER IDEAL USE

Live streaming production
Church services
Conferences & events
Studio broadcasting
Online education
Sports streaming

Live Stream via Ethernet

Supports IP streaming via the LAN port and RTMP protocols
Compatible with platforms like YouTube, Skype, Facebook, and Twitch

USB Capture

Built-in USB-C port can be used to connect the switcher to a computer for USB capture using software like OBS, PotPlayer, or vMix.
The USB-A port can be used to record the program feed at resolutions up to 1080p60 and bitrates up to 32Mb/s.
Encodes using H.264/H.265 with MP4/TS file format support.

Web Page Control

Can be easily controlled via an IP address with settings clearly viewed and controlled on the page.

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER PROS & CONS

Pros	Cons
HDMI + DisplayPort support	No 4K support
Compact design	Learning curve
Multiple streaming options	Limited to 1080p
Built-in multiview

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER FAQs

1. Does it support live streaming?

Yes, via LAN (RTMP) and USB-C output.

2. How many inputs does it have?

4 inputs (3 HDMI + 1 HDMI/DisplayPort).

3. Does it support 4K?

No, it supports up to 1080p60.

4. Can it record video?

Yes, via USB disk and SD card.

5. Is it good for church streaming?

Yes, it is widely used for live church production.

6. Does it support multiview?

Yes, via HDMI multiview output.

7. Can it work without a computer?

Yes, it can operate standalone.

8. Does it support audio mixing?

Yes, with mic/line inputs and embedded audio.

9. Is it portable?

Yes, it is compact and lightweight.

10. Does it support tally systems?

Yes, GPIO tally support is included.

AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER CONCLUSION

The AV MATRIX HVS0401E MICRO 4 CHANNEL MULTIFORMAT SWITCHER is a powerful compact live production tool designed for professional streaming and broadcasting. At KSh 47,900, it delivers multiformat input support, RTMP streaming, USB-C capture, PiP features, and efficient workflow performance.
