Stock Status:
Condition: New
SKU : 8267M19

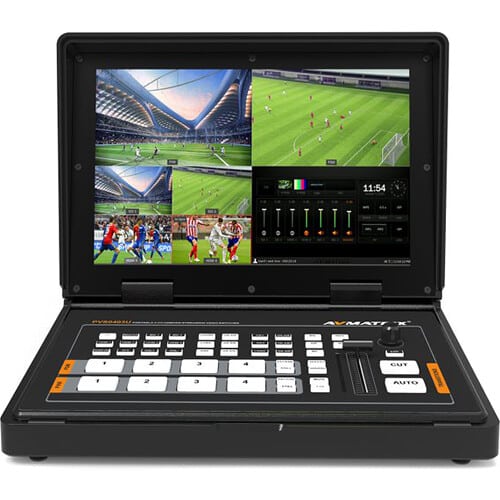

The AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor is a professional all-in-one live production switcher designed for broadcast, streaming, and multi-camera production. It combines video switching, monitoring, and streaming into a single integrated unit with a built-in 10.1-inch IPS display for real-time preview.
It is ideal for church production, studios, events, conferences, and hybrid live streaming setups that require both HDMI and SDI camera integration.
| Product | Price (KSh) |
|---|---|
| AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor | 83,900 |
| Specification | Details |
|---|---|
| Brand | AVMATRIX |
| Model | PVS0403U |
| Inputs | 2× HDMI + 2× 3G-SDI |

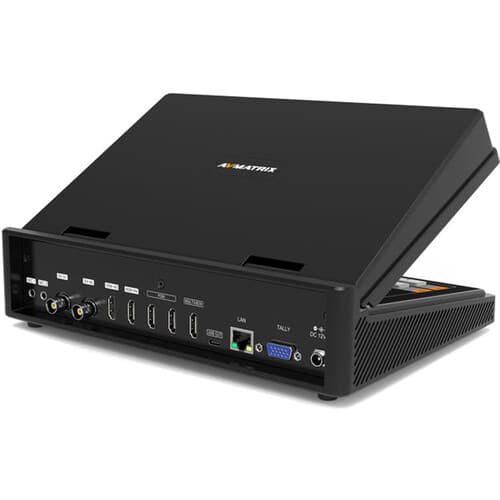

| Outputs | HDMI PGM, HDMI Multiview, USB-C |
| Display | 10.1″ IPS LCD Monitor |
| Resolution | 1080p60 |
| Audio | Embedded + external mic inputs |
| Keying | Chroma + Luma Key |
| Control | T-Bar + LAN |
| Streaming | USB-C UVC output |
The switcher features a rugged all-in-one design with an integrated 10.1″ LCD monitor. This eliminates the need for external preview screens, making it highly portable and efficient for mobile production environments.
Supports smooth switching between 4 video sources with stable 1080p60 output and low latency.
USB-C output allows direct connection to streaming software without additional capture hardware.
Provides real-time multiview, audio mixing, transitions, and keying for professional live workflows.
The AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor improves production efficiency by integrating switching, monitoring, streaming, and audio control into one device. The built-in 10.1″ display removes the need for external monitors, while USB-C streaming reduces additional hardware requirements, resulting in faster and more streamlined live production setups.
The switcher supports multiview formats, including 1080p, 1080i, 720p, 576i, and 480p HDMI and SDI signals. Each output supports up/down scaling and can be configured as HDMI/SDI source, PVW, PGM, clean PGM, and multiview.
Connect the switcher to a computer via the USB Type-C output and use software like OBS, PotPlayer, or vMix to realize livestreaming on YouTube, Facebook, Twitter, and other social media platforms.
The switcher supports chroma and luma key for keying off blue/green and black background colors for virtual studio or live event applications.
There are wipe (11 x 2 patterns), mix, and dip transition effects available using the T-bar or Auto button function, and users can also transition to different shots by switching via the Cut button.
| Pros | Cons |
|---|---|
| Built-in 10.1″ monitor | No 4K support |
| HDMI + SDI inputs | Higher price range |
| Professional switching tools | Learning curve |
| USB-C streaming | Limited to 1080p |
Yes, via USB-C UVC output.
It has 4 inputs (2 HDMI + 2 SDI).
Yes, a built-in 10.1″ IPS monitor.
No, it supports up to 1080p60.
Yes, via USB disk recording.
Yes, it is widely used in church production setups.
Yes, via built-in monitor and HDMI output.
Yes, it can operate standalone.
Yes, with embedded and external audio inputs.
Yes, it is designed for field production.
The AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor is a powerful all-in-one live production system designed for professional streaming and broadcasting. At KSh 83,900, it delivers hybrid SDI/HDMI switching, built-in monitoring, USB-C streaming, and efficient workflow integration.
