AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display OVERVIEW
The AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display is a professional broadcast production system designed for live streaming, recording, and multi-camera switching. It integrates switching, monitoring, and streaming in one portable unit.
The PVS0615U Portable 6-Channel Switcher from AVMATRIX is similar to the predecessor PVS0615 model but additionally features a USB Type-C live streaming output (UVC/UAC). It supports up to six signals in different resolutions and frame rates. The first four channels must be SDI and the other two can be any mix from two HDMI, two DVI/VGA, and two USB Type-A inputs, with HDMI supporting up to UHD 4K60 resolution. All the connections are autodetecting. The portable switcher provides a flexible solution for sports, events, education, and other live production applications. It allows video switching, audio mixing, and up to 1080p60 H.264 PGM recording via an SD card slot.

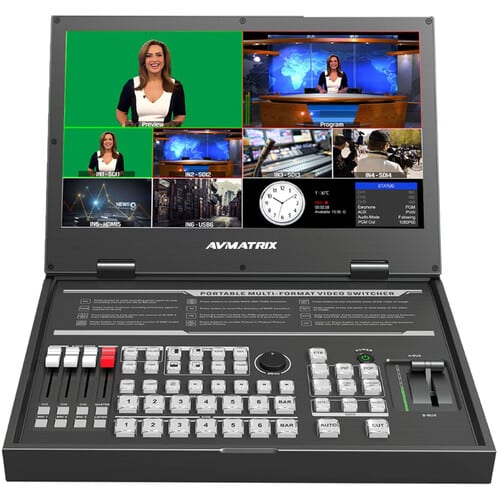

All the signals can be scaled to 1080p60 or 1080i60 on PGM output via SDI/HDMI. The switcher is housed in a robust metal case and has a 15.6″ Full HD display and familiar switching controls, including a T-bar. The display allows for multiview monitoring of six sources along with PVW and PGM with an audio meter.
AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display PRICE IN KENYA
| Product | Price (KSh) |
|---|---|
| AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display | 183,400 |
AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display FULL SPECIFICATIONS
| Specification | Details |
|---|---|
| Brand | AVMATRIX |
| Model | PVS0615U |
| Inputs | 4× SDI + 2× HDMI + DVI/VGA + USB |
| Outputs | HDMI PGM, HDMI Multiview, SDI, USB-C |
| Display | 15.6″ Full HD IPS Monitor |
| Resolution | 1080p60 |
| Audio | RCA/TRS + embedded audio |
| Keying | Chroma, Luma, PiP, PoP |
| Control | T-Bar + LAN |
| Streaming | USB-C UVC/UAC |
AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display DESIGN & BUILD
The unit features a rugged portable design with a built-in 15.6″ display for full standalone operation without external monitors.
AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display PERFORMANCE
Video Performance
Handles multiple SDI and HDMI inputs with stable 1080p60 switching.
Streaming Performance
USB-C plug-and-play streaming to OBS, vMix, Zoom, and similar platforms.
Production Performance
Supports multiview, transitions, keying, audio mixing, and full live production workflow.
AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display EFFICIENCY
The AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display improves efficiency by combining switching, monitoring, streaming, recording, and audio control into one system, reducing external hardware dependency.
AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display FEATURES
- 6-channel hybrid switching system
- Built-in 15.6″ monitor
- SDI + HDMI + DVI/VGA inputs
- USB-C streaming output
- SD card recording
- Chroma & Luma keying
- PiP / PoP effects
- Audio mixing system
- Tally support
- LAN control
AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display IDEAL USE
- Live streaming
- Church production
- Conferences
- Broadcast studios
- Sports production
- OB van setups
AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display PROS & CONS
| Pros | Cons |
|---|---|
| Built-in display | Expensive |
| 6-channel support | No 4K |
| Professional workflow tools | Complex for beginners |
| Portable design | Heavy unit |
AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display FAQs
1. Does it support live streaming?
Yes, via USB-C UVC/UAC.
2. How many inputs?
6 inputs (SDI + HDMI + DVI/VGA + USB).
3. Does it support 4K?
No, up to 1080p60 only.
4. Can it record?
Yes, via SD card recording.
5. Does it have a screen?
Yes, 15.6″ built-in display.
6. Is it good for churches?
Yes, widely used in production setups.
7. Does it support multiview?
Yes, built-in display supports it.
8. Can it work without PC?
Yes, fully standalone.
9. Does it support audio?
Yes, full audio mixing support.
10. Is it portable?
Yes, designed for field use.
AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display CONCLUSION
The AVMATRIX PVS0615U Portable 6-Channel Switcher with USB Streaming & 15.6″ Display is a premium live production system offering professional switching, streaming, and monitoring. At KSh 183,400, it delivers a complete all-in-one broadcast solution.
