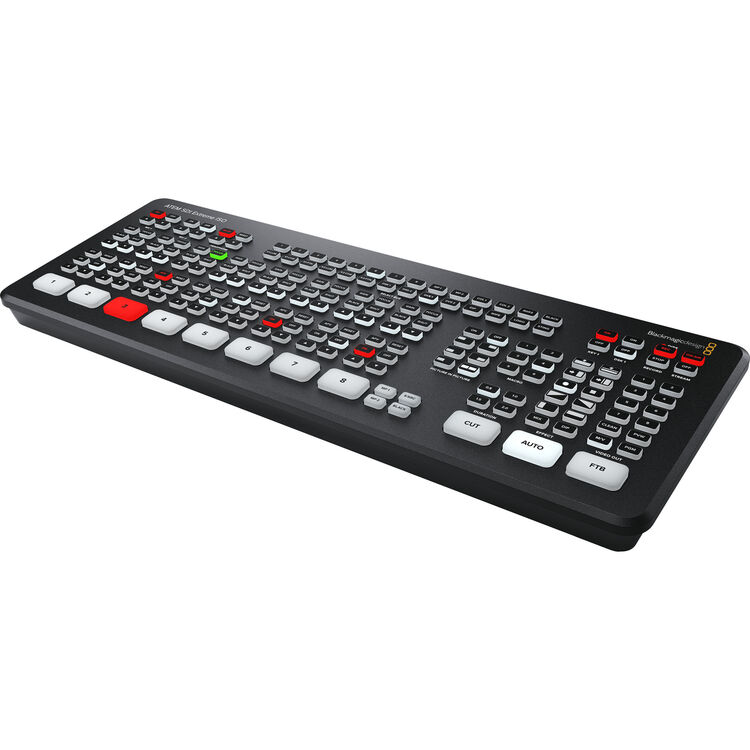

Blackmagic Design ATEM SDI Extreme ISO Switcher Overview
The Blackmagic ATEM SDI Extreme ISO Switcher is a high-end SDI-based live production system designed for professional multi-camera streaming, switching, and full post-production workflows. It allows operators to switch between up to 8 SDI cameras in real time while simultaneously recording every input separately (ISO recording), along with the final program output.
It is widely used in broadcast studios, large churches, and multi-camera event production environments.
Blackmagic Design ATEM SDI Extreme ISO Switcher Price in Kenya
| Product | Price (KES) |
|---|---|
| Blackmagic ATEM SDI Extreme ISO Switcher | 180,000 – 260,000 KES |
Blackmagic Design ATEM SDI Extreme ISO Switcher Specifications Table
| Specification | Details |
|---|---|
| Video Inputs | 8x 3G-SDI |
| ISO Recording | Yes (all 8 inputs individually recorded) |
| Program Recording | Yes |
| Streaming | Built-in RTMP via Ethernet |
| Output | 4x 3G-SDI program outputs |
| Max Resolution | 1080p60 |
| Audio | Fairlight audio mixer |
| Multiview | Up to 16 views |
| Keyers | Multiple chroma + luma keyers |
| DVE Effects | Picture-in-picture support |
| Control | Hardware + ATEM Software Control |
| Power | External DC supply |
Blackmagic Design ATEM SDI Extreme ISO Switcher Performance & Features
- Real-time switching across 8 SDI video sources
- ISO recording of all inputs for full editing flexibility
- Stable hardware streaming engine for long productions
- Broadcast-grade transitions and effects
- Advanced layering and compositing tools
- Seamless integration with DaVinci Resolve workflows
Blackmagic Design ATEM SDI Extreme ISO Switcher Streaming & Recording
- Direct streaming to YouTube, Facebook, Twitch via Ethernet
- Records all 8 inputs separately as H.264 files
- Records program output simultaneously
- Auto-generates DaVinci Resolve project file for editing
- USB-C recording to external storage
- Designed for continuous professional live production workflows
Blackmagic Design ATEM SDI Extreme ISO Switcher Audio & Control
- Built-in Fairlight audio mixer for broadcast-quality sound
- Multiple embedded SDI audio channel support
- Real-time EQ, compressor, limiter, and gain control
- Hardware control buttons for fast switching
- Full software control via ATEM Software Control

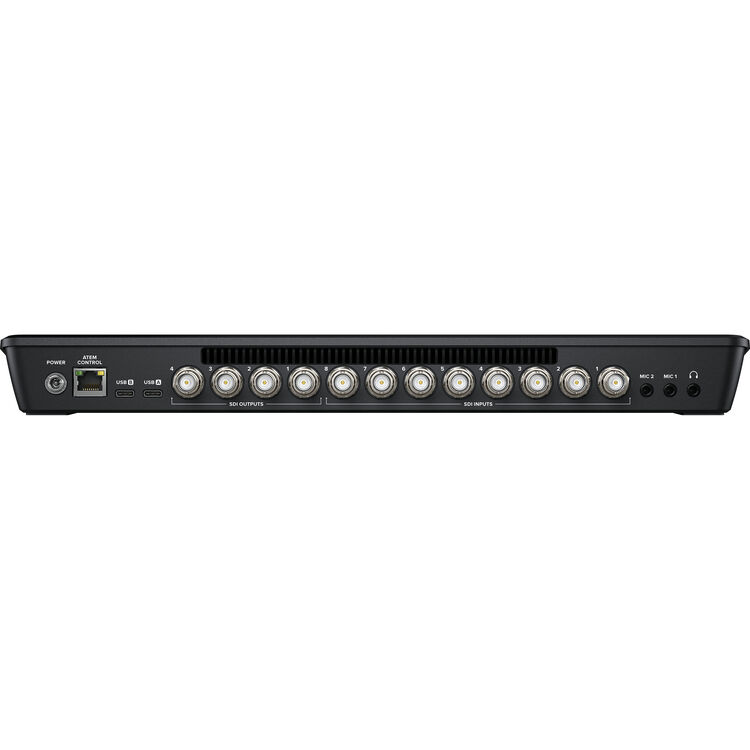

Blackmagic Design ATEM SDI Extreme ISO Switcher Connectivity
- 8x 3G-SDI inputs for professional cameras
- 4x 3G-SDI program outputs for monitors and routing
- Ethernet port for RTMP live streaming
- USB-C ports for recording and webcam output
- 3.5mm stereo audio input for external microphones
- 3.5mm headphone output for monitoring
- SDI embedded audio support across all inputs
- Control via USB or Ethernet connection
Blackmagic Design ATEM SDI Extreme ISO Switcher Build and Design
- Rugged broadcast-grade metal chassis
- Compact rack/desk-friendly professional design
- Backlit tactile buttons for live operation
- Optimized layout for fast multi-camera switching
- Built for studio, church, and event production environments
- Portable enough for mobile SDI broadcast rigs
Blackmagic Design ATEM SDI Extreme ISO Switcher Use Cases
- Professional broadcast studios
- Large church live streaming systems
- Multi-camera sports production
- Corporate event broadcasting
- Podcast and interview studios
- Education and training production
- Live concerts and event coverage
Blackmagic Design ATEM SDI Extreme ISO Switcher Pros and Cons
| Pros | Cons |
|---|---|
| 8 SDI inputs for large productions | Limited to 1080p (no 4K support) |
| Full ISO recording for all sources | Requires SDI infrastructure |
| DaVinci Resolve project integration | High storage requirements |
| Built-in hardware streaming | Complex setup for beginners |
| Broadcast-level reliability | No internal storage |
Blackmagic Design ATEM SDI Extreme ISO Switcher FAQs
What does ISO recording mean?
It records each camera input separately for full post-production editing.
Does it support 4K?
No, it supports up to 1080p60 only.
Can it stream without a computer?
Yes, it has a built-in hardware streaming encoder.
How many cameras can it support?
Up to 8 SDI inputs.
What is its biggest advantage?
It combines live switching, ISO recording, and DaVinci Resolve editing workflow in one system.
Blackmagic Design ATEM SDI Extreme ISO Switcher Conclusion
The Blackmagic ATEM SDI Extreme ISO Switcher is a powerful professional live production system designed for large-scale SDI workflows. With 8 SDI inputs, ISO recording, built-in streaming, and full DaVinci Resolve integration, it is ideal for broadcast studios, churches, and high-end multi-camera productions in Kenya that require reliable and scalable live production capabilities.
