AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor OVERVIEW
The AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor is a professional all-in-one live production switcher designed for broadcast, streaming, and multi-camera production. It combines video switching, monitoring, and streaming into a single integrated unit with a built-in 10.1-inch IPS display for real-time preview.
It is ideal for church production, studios, events, conferences, and hybrid live streaming setups that require both HDMI and SDI camera integration.
AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor PRICE IN KENYA
| Product | Price (KSh) |
|---|---|
| AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor | 83,900 |
AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor FULL SPECIFICATIONS
| Specification | Details |
|---|---|
| Brand | AVMATRIX |
| Model | PVS0403U |
| Inputs | 2× HDMI + 2× 3G-SDI |
| Outputs | HDMI PGM, HDMI Multiview, USB-C |
| Display | 10.1″ IPS LCD Monitor |
| Resolution | 1080p60 |
| Audio | Embedded + external mic inputs |
| Keying | Chroma + Luma Key |
| Control | T-Bar + LAN |
| Streaming | USB-C UVC output |
AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor DESIGN & BUILD

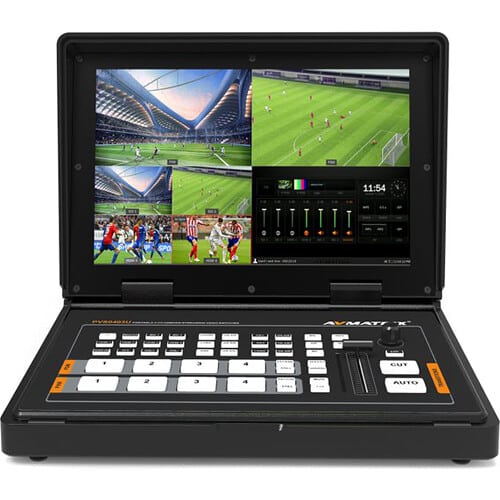

The switcher features a rugged all-in-one design with an integrated 10.1″ LCD monitor. This eliminates the need for external preview screens, making it highly portable and efficient for mobile production environments.
AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor PERFORMANCE
Video Performance
Supports smooth switching between 4 video sources with stable 1080p60 output and low latency.
Streaming Performance
USB-C output allows direct connection to streaming software without additional capture hardware.
Production Performance
Provides real-time multiview, audio mixing, transitions, and keying for professional live workflows.
AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor EFFICIENCY
The AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor improves production efficiency by integrating switching, monitoring, streaming, and audio control into one device. The built-in 10.1″ display removes the need for external monitors, while USB-C streaming reduces additional hardware requirements, resulting in faster and more streamlined live production setups.
AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor FEATURES
- 4-channel hybrid input switching (HDMI + SDI)
- Built-in 10.1″ Full HD monitor
- USB-C direct streaming output
- USB recording support
- Real-time multiview display
- Chroma & Luma keying
- Professional transition effects
- Dual audio inputs
- LAN remote control
AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor IDEAL USE
- Live streaming production
- Church services
- Conferences & seminars
- Studio broadcasting
- Sports events
- Hybrid virtual events
Scaled Output and Multiview
The switcher supports multiview formats, including 1080p, 1080i, 720p, 576i, and 480p HDMI and SDI signals. Each output supports up/down scaling and can be configured as HDMI/SDI source, PVW, PGM, clean PGM, and multiview.
USB Capture for Streaming
Connect the switcher to a computer via the USB Type-C output and use software like OBS, PotPlayer, or vMix to realize livestreaming on YouTube, Facebook, Twitter, and other social media platforms.
Upstream and Downstream Keying
The switcher supports chroma and luma key for keying off blue/green and black background colors for virtual studio or live event applications.
Transition Effects
There are wipe (11 x 2 patterns), mix, and dip transition effects available using the T-bar or Auto button function, and users can also transition to different shots by switching via the Cut button.
AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor PROS & CONS
| Pros | Cons |
|---|---|
| Built-in 10.1″ monitor | No 4K support |
| HDMI + SDI inputs | Higher price range |
| Professional switching tools | Learning curve |
| USB-C streaming | Limited to 1080p |
AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor FAQs
1. Does it support live streaming?
Yes, via USB-C UVC output.
2. How many inputs does it have?
It has 4 inputs (2 HDMI + 2 SDI).
3. Does it include a screen?
Yes, a built-in 10.1″ IPS monitor.
4. Does it support 4K?
No, it supports up to 1080p60.
5. Can it record video?
Yes, via USB disk recording.
6. Is it good for church streaming?
Yes, it is widely used in church production setups.
7. Does it support multiview?
Yes, via built-in monitor and HDMI output.
8. Can it work without a computer?
Yes, it can operate standalone.
9. Does it support audio mixing?
Yes, with embedded and external audio inputs.
10. Is it portable?
Yes, it is designed for field production.
AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor CONCLUSION
The AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1″ Monitor is a powerful all-in-one live production system designed for professional streaming and broadcasting. At KSh 83,900, it delivers hybrid SDI/HDMI switching, built-in monitoring, USB-C streaming, and efficient workflow integration.
