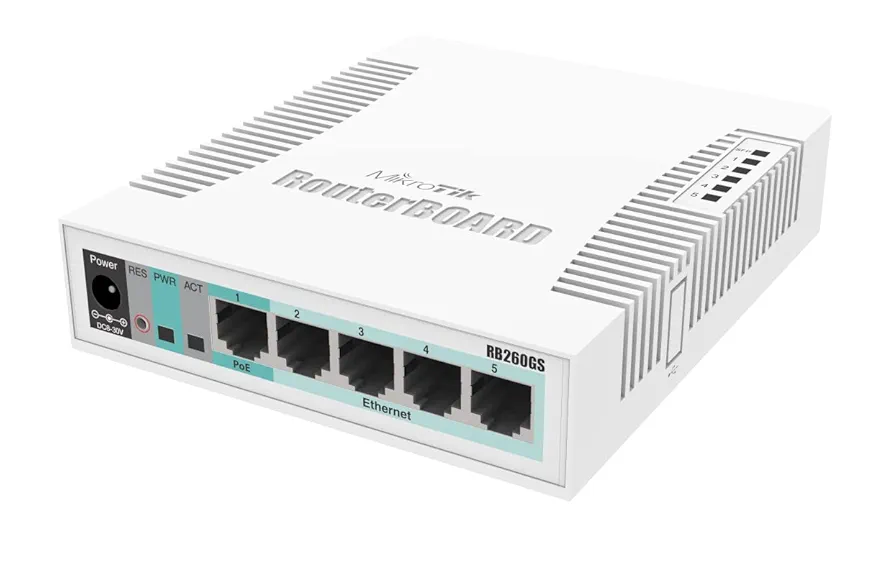

MikroTik CSS106-5G-1 5-Port Gigabit Switch Plus 1 SFP Overview
The MikroTik CSS106-5G-1 5-Port Gigabit Switch Plus 1 SFP (also known as RB260GS) is a compact smart switch designed for small offices, home networks, and light enterprise deployments. It combines five high-speed Gigabit Ethernet ports with a dedicated SFP slot for fiber connectivity, making it ideal for networks that need both copper and fiber integration.
It runs MikroTik’s SwOS (SwitchOS), a lightweight browser-based operating system that allows easy configuration of VLANs, port isolation, traffic control, and basic Layer 2 switching features without the complexity of full RouterOS.
This makes it a strong choice for users who want managed switching features at an affordable cost without deep networking complexity.
MikroTik CSS106-5G-1 5-Port Gigabit Switch Plus 1 SFP Price in Kenya
| Product | Price (KES) |
|---|---|
| MikroTik CSS106-5G-1 5-Port Gigabit Switch Plus 1 SFP (RB260GS) | 6,500 – 9,500 KES |
MikroTik CSS106-5G-1 Specifications Table
| Specification | Details |
|---|---|
| Model | CSS106-5G-1S (RB260GS) |
| Ports | 5 × Gigabit RJ45 + 1 × SFP |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| Operating System | SwOS (web-based) |
| Architecture | Layer 2 smart switch |
| VLAN Support | Yes |
| Jumbo Frames | Up to ~9KB |
| Power Input | 11–30V DC (passive PoE supported) |
| Power Consumption | ~5–11W |
| Cooling | Passive (fanless) |
| Enclosure | Compact plastic case |
| Management | Web GUI |
| Operating Temperature | -20°C to +60°C |
MikroTik CSS106-5G-1 Performance
The MikroTik CSS106-5G-1 delivers reliable gigabit switching performance suitable for small to medium network setups.
- Non-blocking architecture ensures full Gigabit throughput across ports
- Stable Layer 2 switching for LAN environments
- Efficient handling of VLANs and segmented networks
- Suitable for ISP uplinks via SFP fiber connection
- Low latency performance for office and home networking
While it is not an enterprise core switch, it performs very well in edge and access-layer deployments.
MikroTik CSS106-5G-1 Connectivity and Features
- 5 Gigabit Ethernet ports for wired devices
- 1 SFP port for fiber uplinks or backbone links
- SwOS browser-based configuration
- VLAN configuration for network segmentation
- Port mirroring for monitoring traffic
- MAC filtering for basic security control
- Bandwidth limiting per port
- Plug-and-play deployment with optional configuration
MikroTik CSS106-5G-1 Design and Build
- Compact and lightweight design
- Fanless operation for silent environments
- Durable plastic enclosure
- Desktop or rack shelf placement
- Low heat output suitable for 24/7 operation
MikroTik CSS106-5G-1 Use Cases
- Small office and home office (SOHO) networks
- CCTV and surveillance systems
- ISP customer edge switching
- Fiber uplink distribution in small networks
- Network segmentation using VLANs
- Home labs and MikroTik learning environments
MikroTik CSS106-5G-1 Pros and Cons
| Pros | Cons |
|---|---|
| Affordable managed switch | Limited advanced enterprise features |
| 5 Gigabit ports + 1 SFP uplink | No PoE support |
| VLAN and Layer 2 management | Plastic build (not rack-grade metal) |
| Low power consumption | SwOS is basic compared to RouterOS |
| Silent fanless operation | Not ideal for large enterprise cores |
| Easy web-based setup | Limited Layer 3 capabilities |
MikroTik CSS106-5G-1 FAQs
Is the MikroTik CSS106-5G-1 a managed switch?
Yes, it is a smart managed Layer 2 switch running SwOS.
Does it support fiber connections?
Yes, it has 1 SFP port for fiber uplinks.
Can it handle gigabit internet?
Yes, it supports full gigabit throughput across ports.
Is it good for CCTV systems?
Yes, it is commonly used for CCTV and small surveillance networks.
Does it require configuration?
No, it is plug-and-play, but VLAN and advanced features can be configured via web interface.
MikroTik CSS106-5G-1 Conclusion
The MikroTik CSS106-5G-1 5-Port Gigabit Switch Plus 1 SFP (RB260GS) is a reliable, affordable, and efficient smart switch for small networks in Kenya. With gigabit speeds, SwOS management, VLAN support, and a dedicated SFP fiber uplink, it offers excellent value for home, office, and light enterprise deployments where simplicity and stability are key.
