Product Specifications

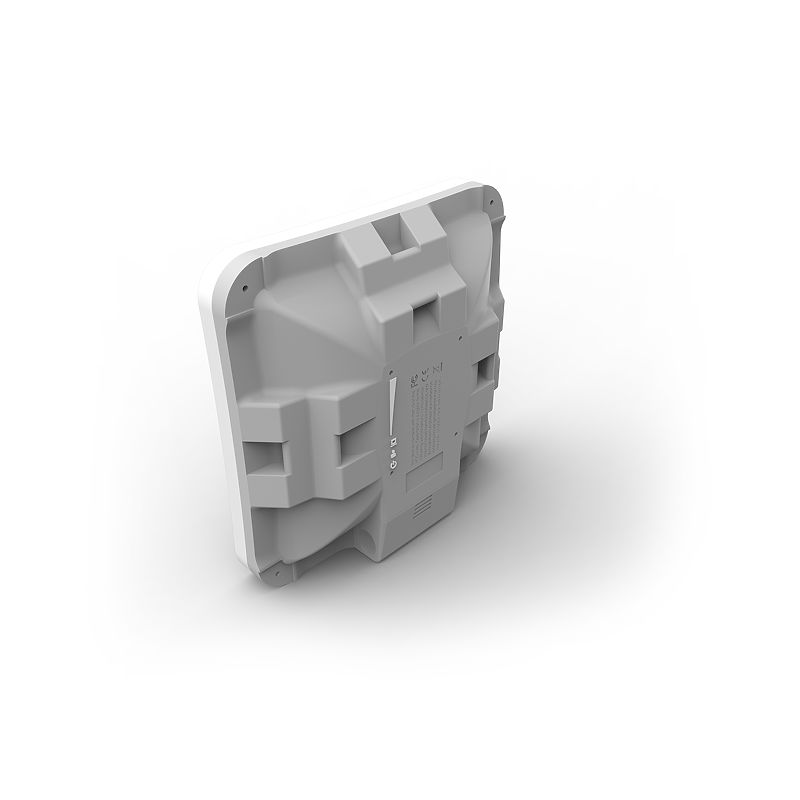

MikroTik SXTsq 5 ac Overview
The MikroTik SXTsq 5 ac (RBSXTSQG-5acD) is a compact outdoor wireless device designed for long-range point-to-point (PtP) links and wireless client (CPE) installations. It operates on the 5GHz band using 802.11ac technology and integrates a high-gain 16 dBi directional antenna, making it ideal for stable backbone links between buildings or remote sites.
Its slim square design is weatherproof and optimized for pole mounting, allowing reliable outdoor deployment in ISP networks, CCTV backhauls, and building-to-building connectivity.
MikroTik SXTsq 5 ac Price in Kenya
| Product | Price (KES) |
|---|---|
| MikroTik SXTsq 5 ac | 10,000 – 13,000 KES |
MikroTik SXTsq 5 ac Specifications Table
| Specification | Details |
|---|---|
| Model | RBSXTSQG-5acD |
| Frequency | 5 GHz (802.11a/n/ac) |
| Antenna Gain | 16 dBi |
| Wireless Speed | Up to 867 Mbps |
| CPU | Quad-core IPQ-4018 |
| RAM | 256MB |
| Storage | 16MB Flash |
| Ethernet | 1 × Gigabit RJ45 |
| OS | RouterOS (Level 3 license) |
| Power | Passive PoE (10–28V) |
| Max Power Usage | ~7W |
| Protection Rating | IP55 |
| Mounting | Pole / Wall mount |
MikroTik SXTsq 5 ac Performance
The SXTsq 5 ac is optimized for stable long-distance wireless links rather than general Wi-Fi coverage.
- Excellent for point-to-point links up to several kilometers (with clear line of sight)
- Stable 5GHz performance with low interference in rural and semi-urban environments
- Can deliver high throughput (often 100–300+ Mbps real-world depending on conditions)
- Performs best when paired with another MikroTik CPE or compatible 5GHz radio
- Highly sensitive to alignment due to directional antenna design
It is commonly used by ISPs and installers for building-to-building backbone links and last-mile connectivity.
MikroTik SXTsq 5 ac Connectivity and Features
- 5GHz directional wireless bridge capability
- Gigabit Ethernet port for high-speed wired output
- RouterOS configuration (advanced routing, bridging, monitoring)
- Supports PtP and CPE modes (not a general Wi-Fi access point)
- Passive PoE simplifies outdoor installation
- Low power design for solar or backup power setups
MikroTik SXTsq 5 ac Design and Build
- Compact and lightweight square outdoor enclosure
- IP55 weather resistance for rain and dust protection
- Slim form factor (two times thinner than older SXT models)
- Pole-mount friendly for rooftop or mast installations
- Passive cooling for silent 24/7 operation
MikroTik SXTsq 5 ac Use Cases
- Point-to-point wireless bridge between buildings
- ISP last-mile client connectivity (CPE device)
- CCTV and surveillance system backhaul links
- Rural internet distribution links
- Campus or multi-building network connectivity
- Temporary outdoor network deployments
MikroTik SXTsq 5 ac Pros and Cons
| Pros | Cons |
|---|---|
| Strong 16 dBi directional antenna | Not suitable as a Wi-Fi access point |
| Stable long-range 5GHz performance | Requires precise alignment |
| Gigabit Ethernet port | Limited RouterOS license (L3) |
| Weatherproof IP55 design | Single Ethernet port only |
| Low power consumption | Performance depends heavily on line of sight |
| Affordable outdoor CPE solution | No built-in omni wireless coverage |
MikroTik SXTsq 5 ac FAQs
Is the SXTsq 5 ac a Wi-Fi router?
No, it is an outdoor CPE/backbone device for point-to-point links.
How far can it transmit?
With clear line of sight, it can handle links from a few hundred meters up to several kilometers.
Does it support gigabit speeds?
Yes, it has a Gigabit Ethernet port, but real wireless throughput depends on link quality.
Can it be used as an access point?
Not effectively—it is designed for directional links, not coverage Wi-Fi.
Is it good for CCTV connections?
Yes, it is widely used for outdoor CCTV backhaul links.
MikroTik SXTsq 5 ac Conclusion
The MikroTik SXTsq 5 ac (RBSXTSQG-5acD) is a reliable and cost-effective outdoor wireless solution for Kenya’s ISP, enterprise, and campus networking needs. With its 16 dBi directional antenna, 5GHz 802.11ac support, and rugged IP55 design, it delivers stable long-range connectivity for point-to-point and CPE deployments where fiber or cable installation is impractical.
